SAFEGUARD SENSITIVE PAYLOADS.
NEWTON’s ADC® is a heavy duty airdrop system that enhances rigging & protects sensitive payloads on delivery.

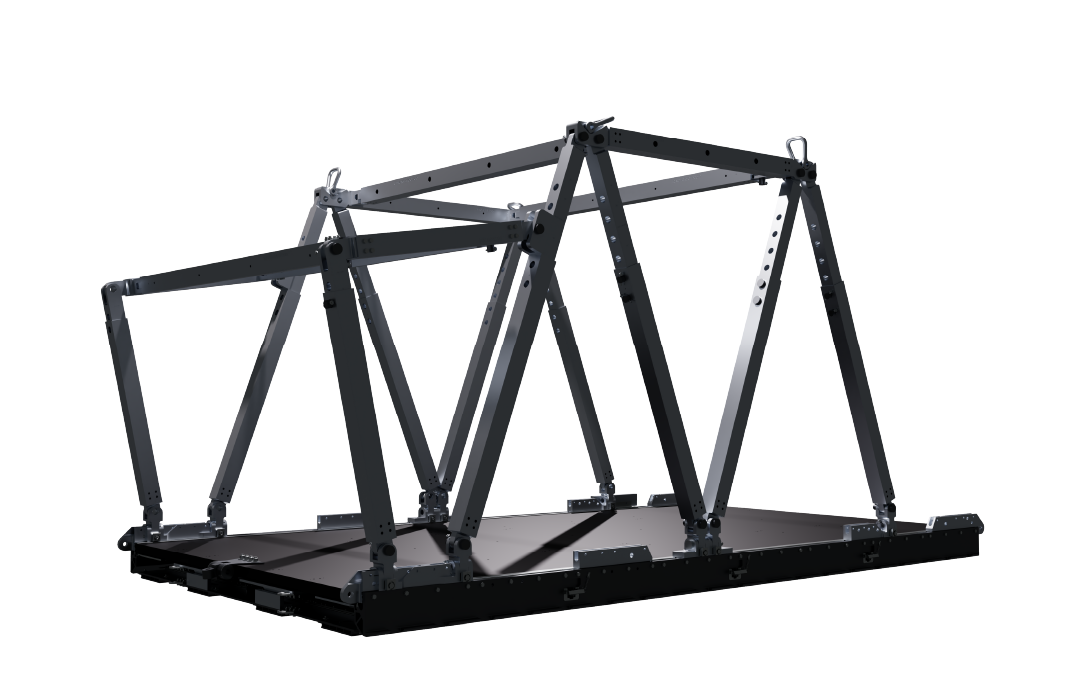

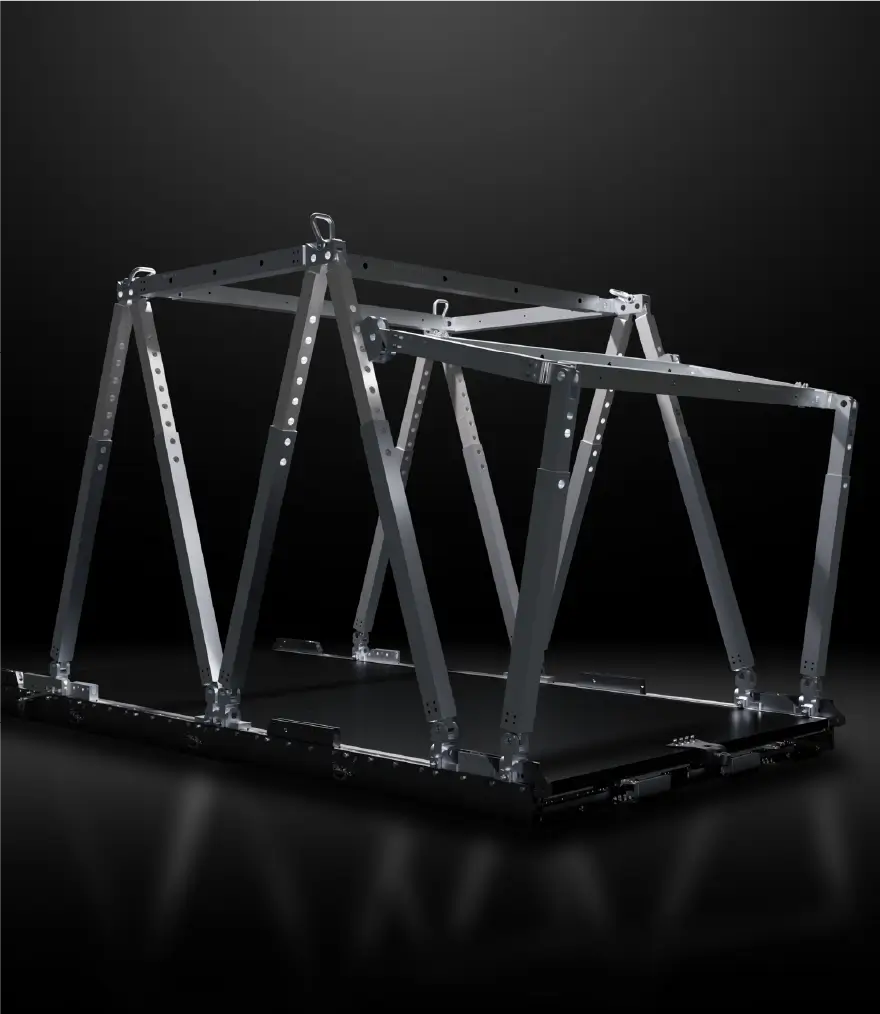

A height-adjustable ADC® tailored to your mission requirements. Compatible with C-130 and C-17 aircraft.
PAYLOAD MAX. DIMENSIONS:
Height: 64.6 inches to 101.47 inches
Width: 95.96 inches
5 User-configurable heights
TOTAL SUSPENDED WEIGHT (TSW) RATING:
38,500 lbs maximum

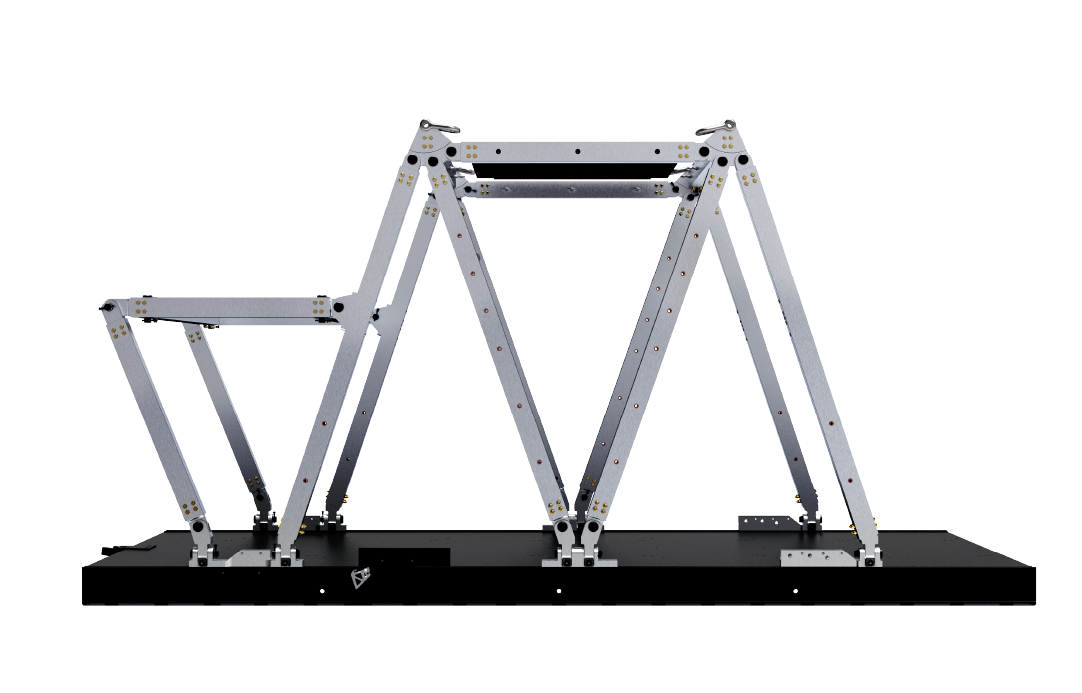

A fixed-height ADC® designed specifically for aerial delivery operations with the C-17 aircraft.
PAYLOAD MAX. DIMENSIONS:
Height: 102.4 inches
Width: 95.96 inches
TOTAL SUSPENDED WEIGHT (TSW) RATING:
26,000 lbs maximum

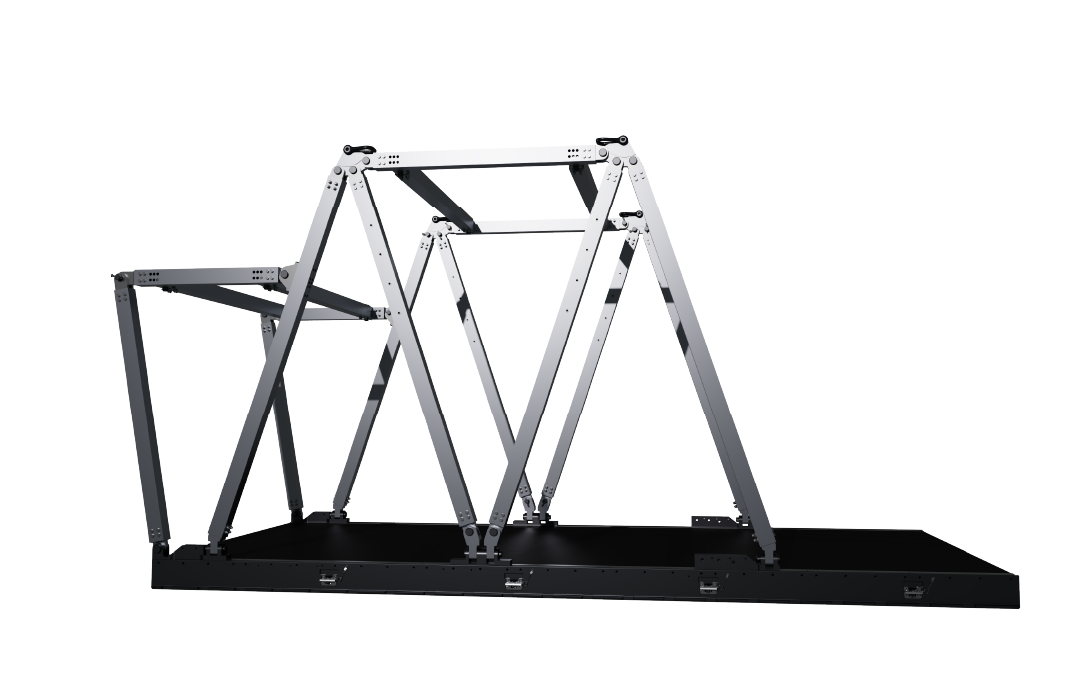

A fixed-height ADC® designed specifically for aerial delivery operations with the C-130 aircraft.
PAYLOAD MAX. DIMENSIONS:
Height: 83.79 inches
Width: 95.96 inches
TOTAL SUSPENDED WEIGHT (TSW) RATING:
26,000 lbs maximum
* All ADC® and AADC® models are fully compatible with traditional Type V platforms as well as RRDAS-retrofitted Type V platforms..
An assembled ADC® system weighs from 1,000 lbs. (ADC® C-130) to 1,450 lbs. (AADC®), and is airdrop ready with Total Suspended Weight (TSW) ratings of 26,000 lbs (ADC® C-17 & C-130 versions) and 38,500 lbs (AADC® version).
The ADC‘s additional safety features, like the ADC® Net, further enhance protective performance from falling parachute ground release systems.

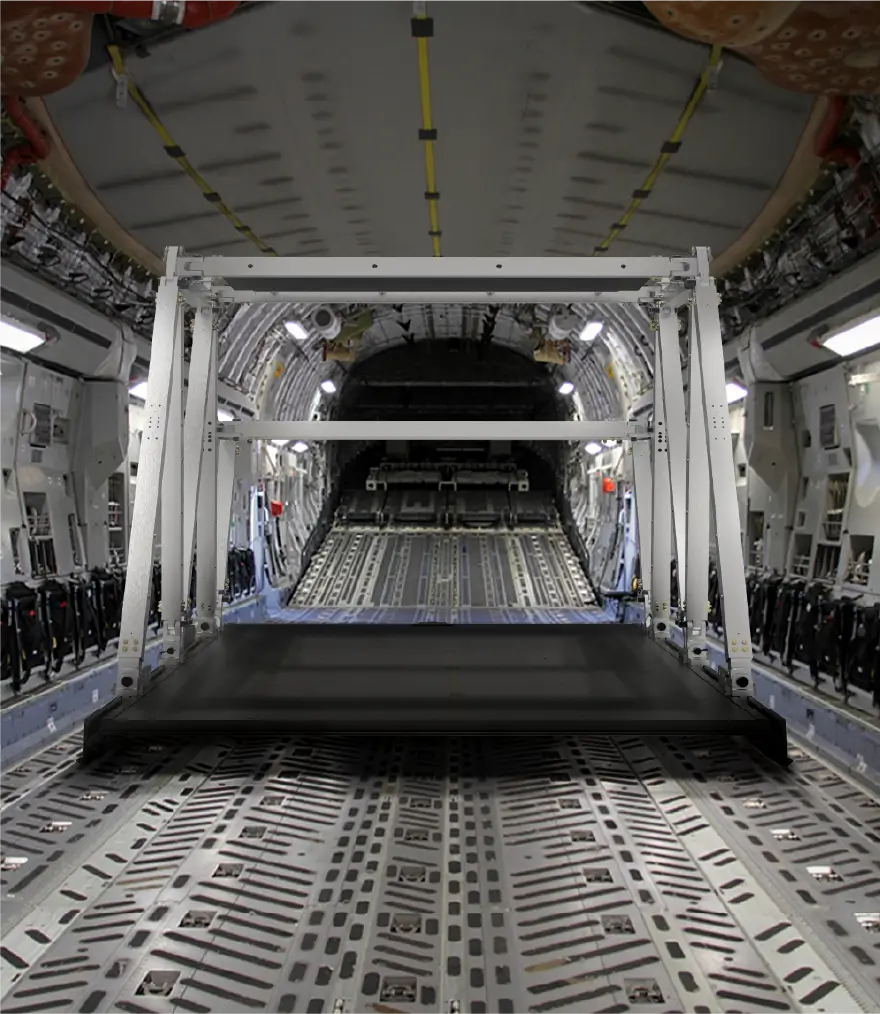

All ADC® versions work with typical Aerial Delivery Operations aircraft & resources:

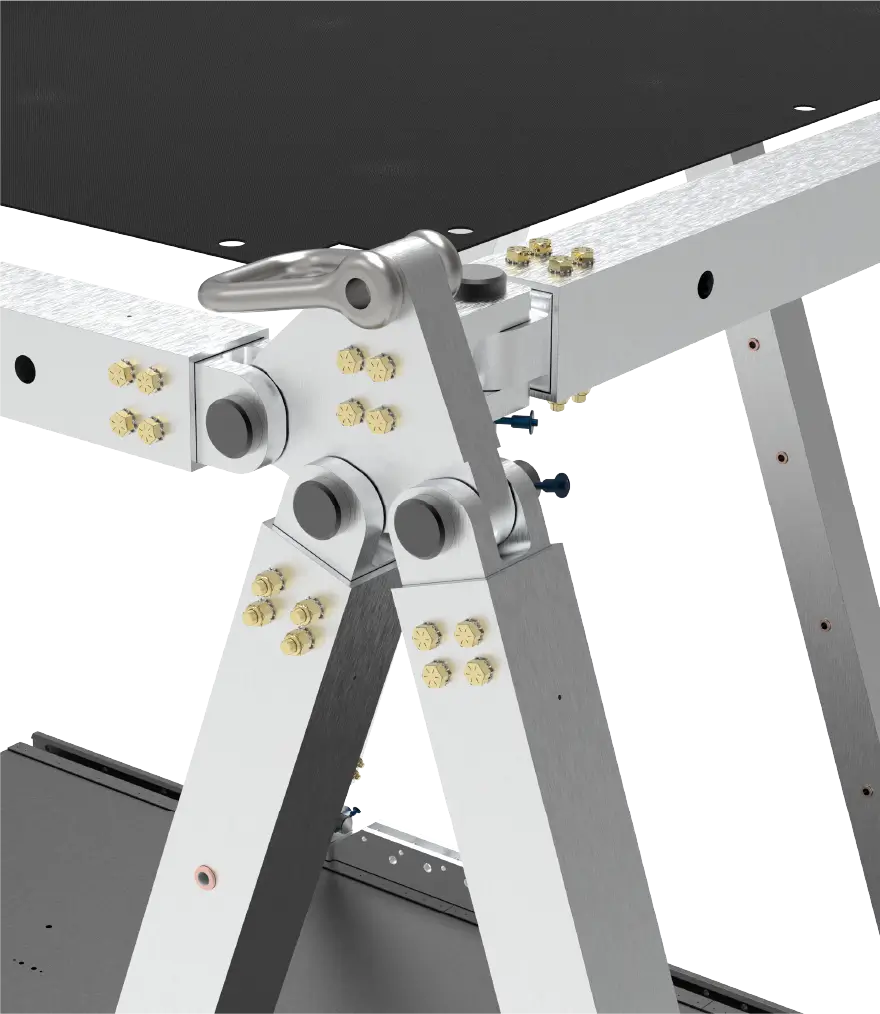

Engraved & pre-assembled beam assemblies for simple installation:

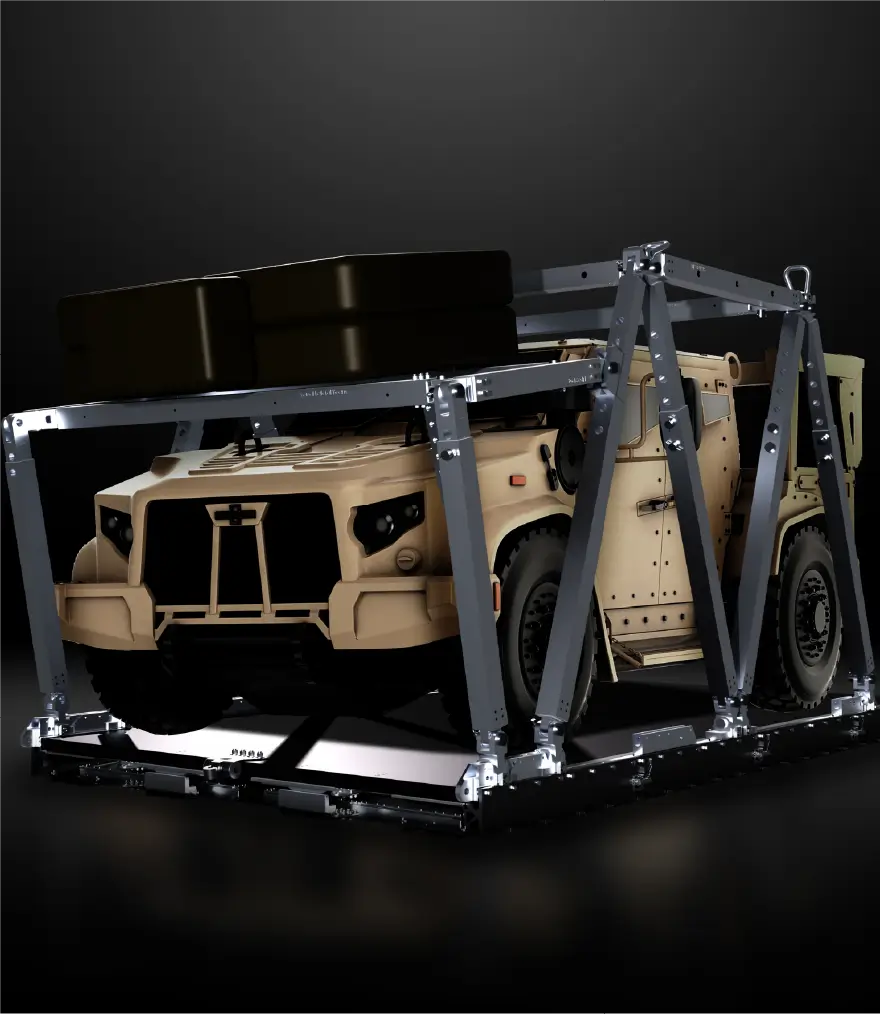

Roll-on payload to rig, quick roll off for recovery:
ADC® AERIAL DELIVERY CAGE. PATENT PENDING.
We’re always ready for your mission. To learn more about NEWTON’s ADC® and Aerial Delivery Systems® and how we can enhance your Cargo Aerial Delivery Operations, please contact us using the link below.
