AUTONOMOUS DERIGGING - REDUCED EXPOSURE TIMES, LESS RISK.
NEWTON’s AReS® is a reusable, field-resettable lashing release system for fast, autonomous de-rigging of manned & unmanned payloads on the DZ.
1 AReS also provides a programmable auxiliary output capable of timed or commanded operation for secondary operations such as obscuration or demilitarization.
THE WORLD'S FASTEST, CONFIGURABLE
AUTONOMOUS PAYLOAD RELEASE
DIMENSIONS:
(7.00 in x 7.00 in x 4.50 in)
DESCRIPTION:

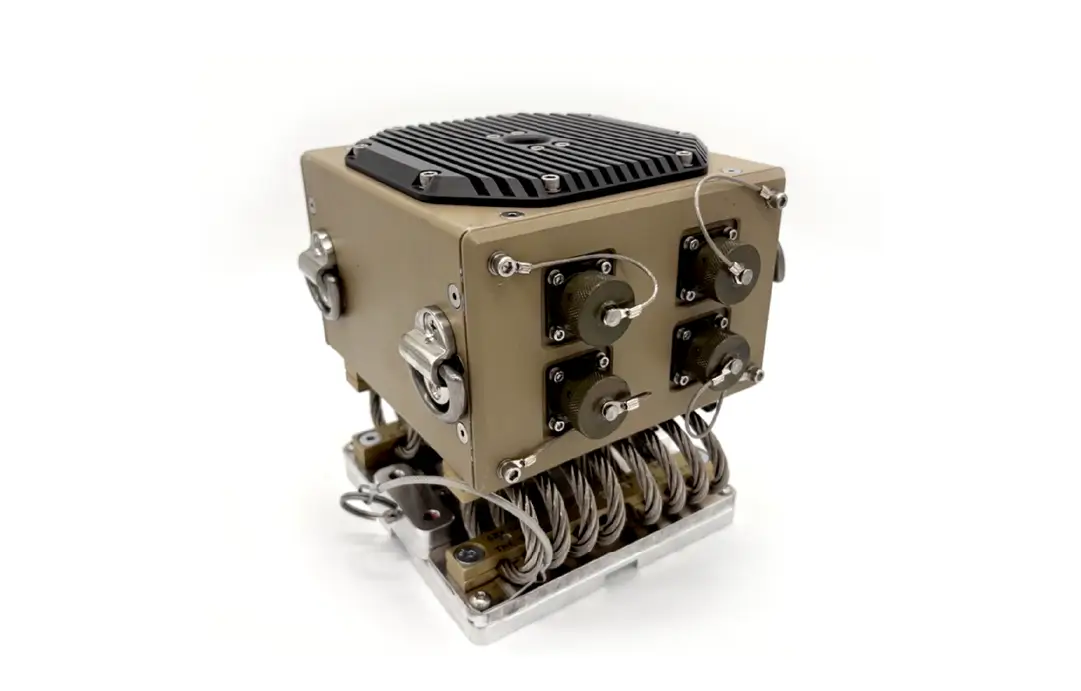

Main control unit. Operates up to 4 SDM’s. Attached to the platform and secured with common Rigger supplies.
DIMENSIONS:
(12.00 in x 2.00 in x 2.00 in)
DESCRIPTION:

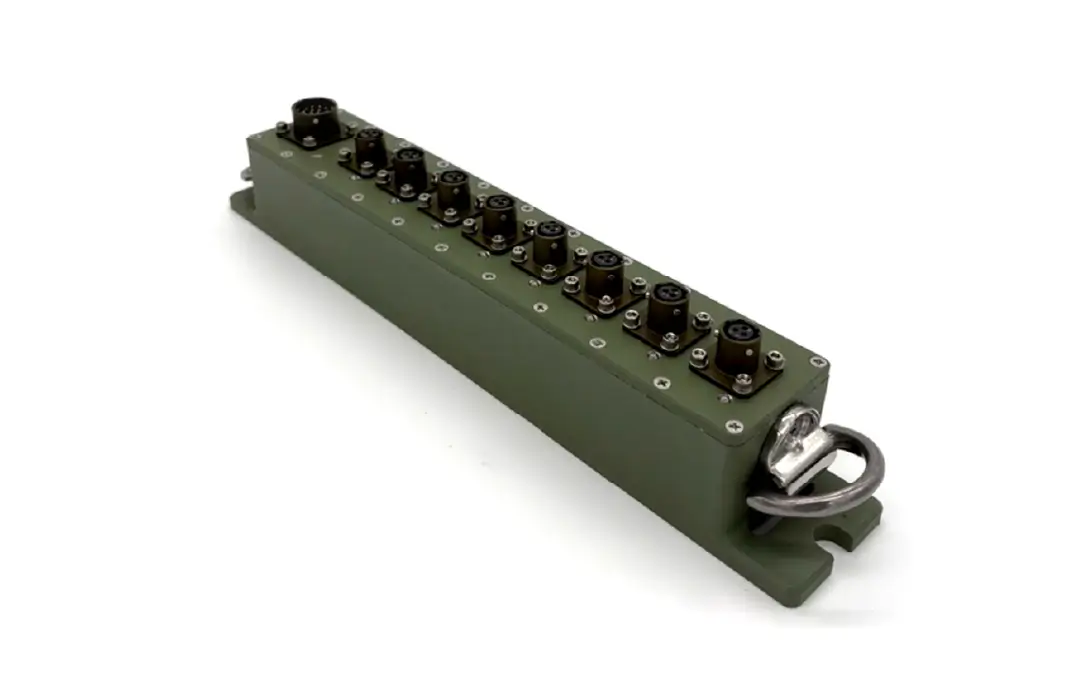

Distributes signal to LCA’s. Flexible install. Enables optimum cable routing schemes for each payload.
DIMENSIONS:
(5.00 in x 5.00 in x 3.00 in or 5.00 (H))
DESCRIPTION:

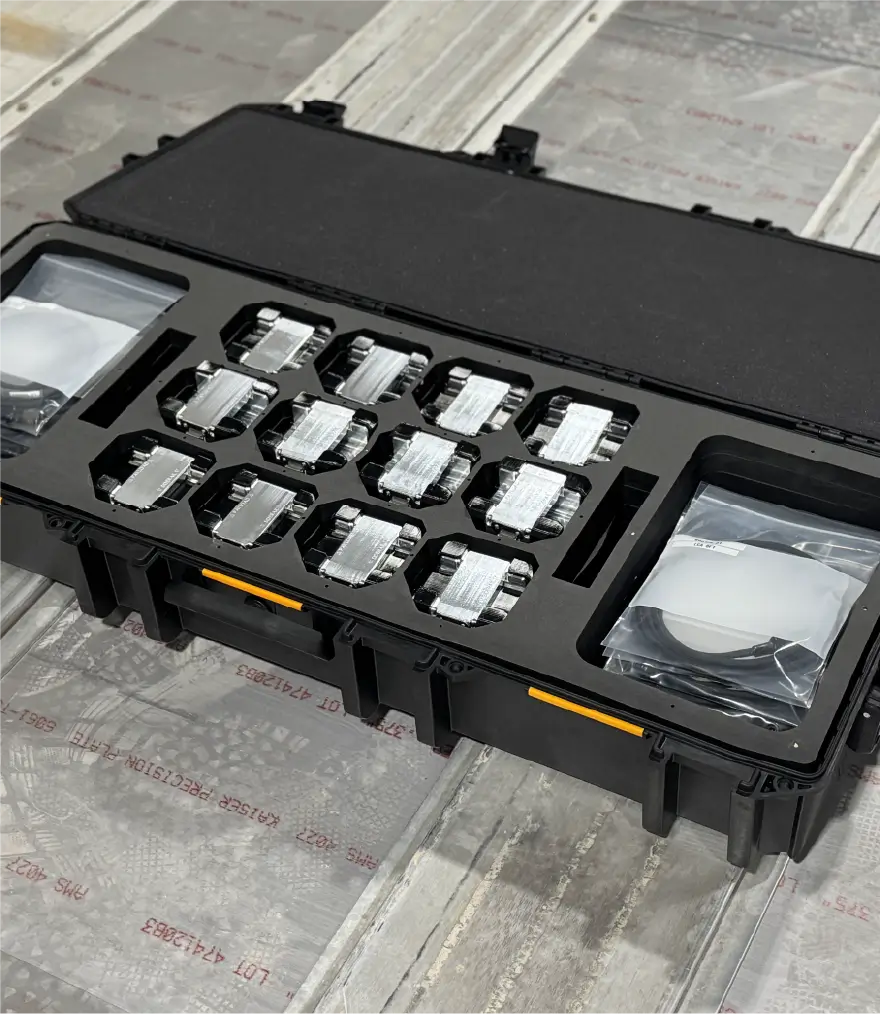

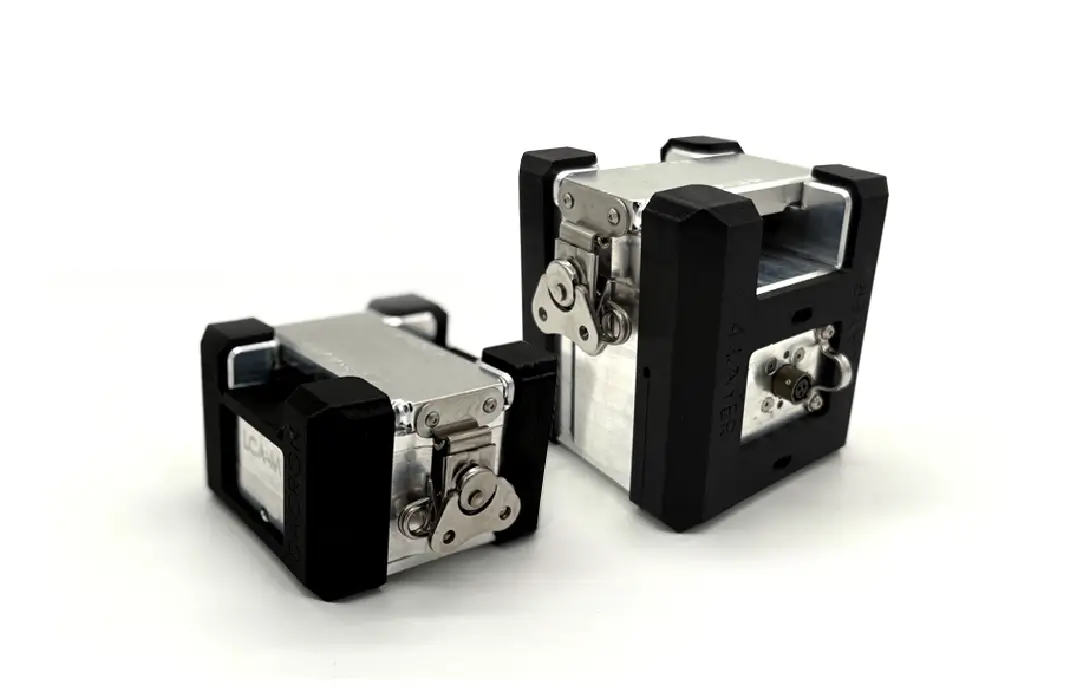

Release action points. 2 sizes. Easily install to pre-rigged Payload Restraint Lashings (M) and Suspension Sling (H).
DIMENSIONS:
(7.00 in x 7.00 in x 4.50 in)
DESCRIPTION:
Main control unit. Operates up to 4 SDM’s. Attached to the platform and secured with common Rigger supplies.
DIMENSIONS:
(12.00 in x 2.00 in x 2.00 in)
DESCRIPTION:
Distributes signal to LCA’s. Flexible install. Enables optimum cable routing schemes for each payload.
DIMENSIONS:
(5.00 in x 5.00 in x 3.00 in or 5.00 (H))
DESCRIPTION:
Release action points. 2 sizes. Easily install to pre-rigged Payload Restraint Lashings (M) and Suspension Sling (H).

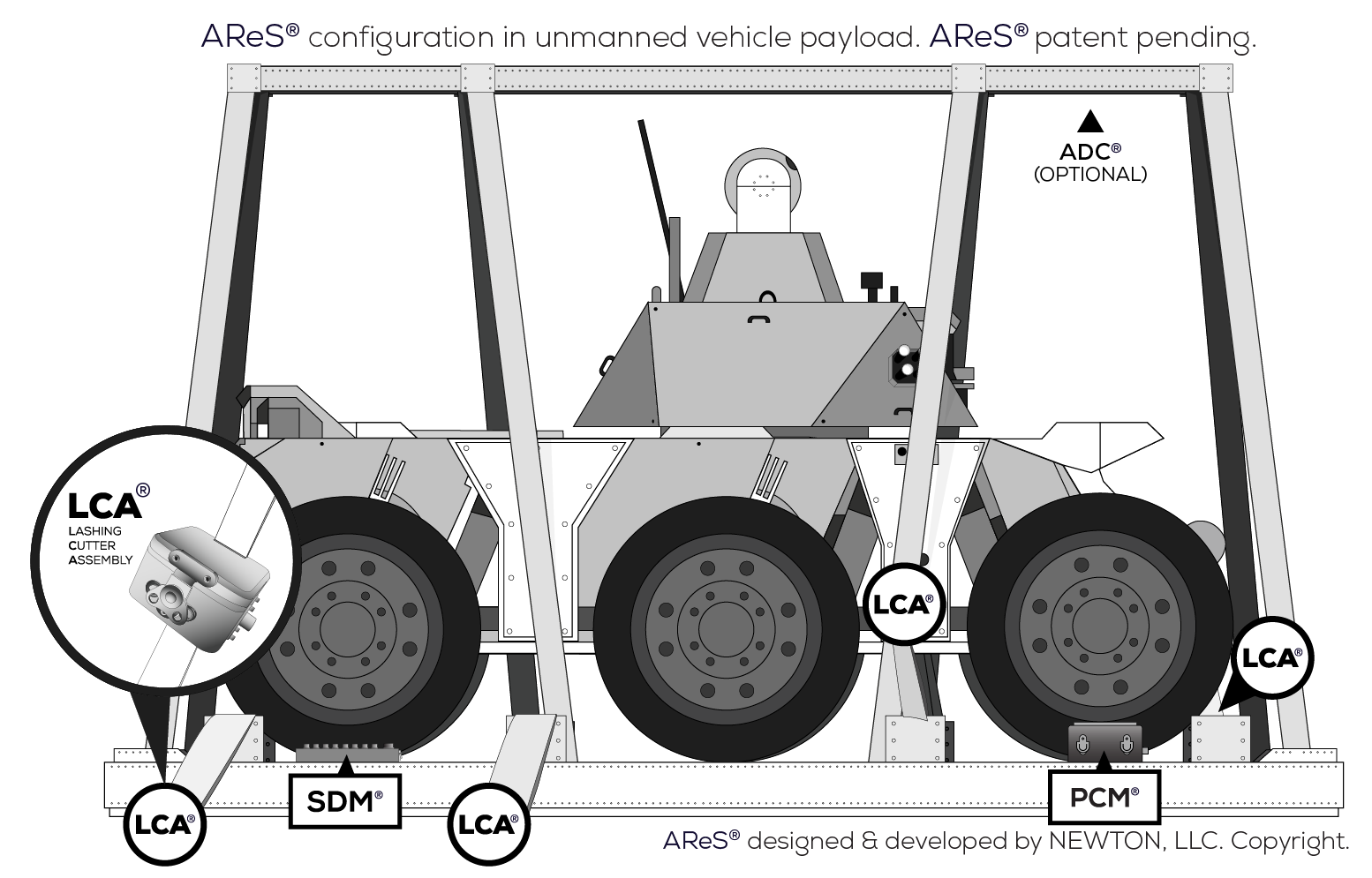

AReS® covers all your mission needs:
3 elements, UP TO 32 RELEASE POINTS per system + aux. output:
Two Riggers can fully install AReS® in under 2 hours onto pre-rigged loads on 16 ft (4.9 m) platform including system checkouts.
AReS® is software configurable and designed for safety:
2 Default lashing release delay is 10 seconds.
3 Lashing Cutters are compatible with existing Dacron lashings (LCA Medium) as well as Type 26 suspension slings (LCA Heavy).
AReS® AUTONOMOUS RELEASE SYSTEM. PATENT PENDING.
We’re always ready for your mission. To learn more about NEWTON’s AReS® and Aerial Delivery Systems® and how we can enhance your Cargo Aerial Delivery Operations, please contact us using the link below.
