RRDAS
TYPE V PLATFORM
RETROFIT KIT^®

LESS TIME ON THE DROP ZONE. LOWER WARFIGHTER RISK.
NEWTON’s RRDAS^® is a reusable aerial delivery system that enables payload roll-on/rolloff, reduces impact loads on landing without the use of EDM, and enables fast load recovery and readiness on the DZ.

REQUEST INFORMATION

FASTER RECOVERY,
REDUCED WARFIGHTER EXPOSURE & RISKS

The RRDAS^®Type V retrofit kit by NEWTON is an easy to rig, reusable system for aerial delivery platforms that mitigates Warfighter risk by diminishing their exposure times during load recovery in contested environment drop zones.

The RRDAS^® air bag system significantly reduces load impact upon landing, securing cargo while decreasing the need for honeycomb or EDM (energy dissipating material). Warfighters can de-rig and roll off in under 3 minutes, and as fast as 10 seconds when paired with AReS^®.

STRATEGIC FEATURES
‍& ADVANTAGES

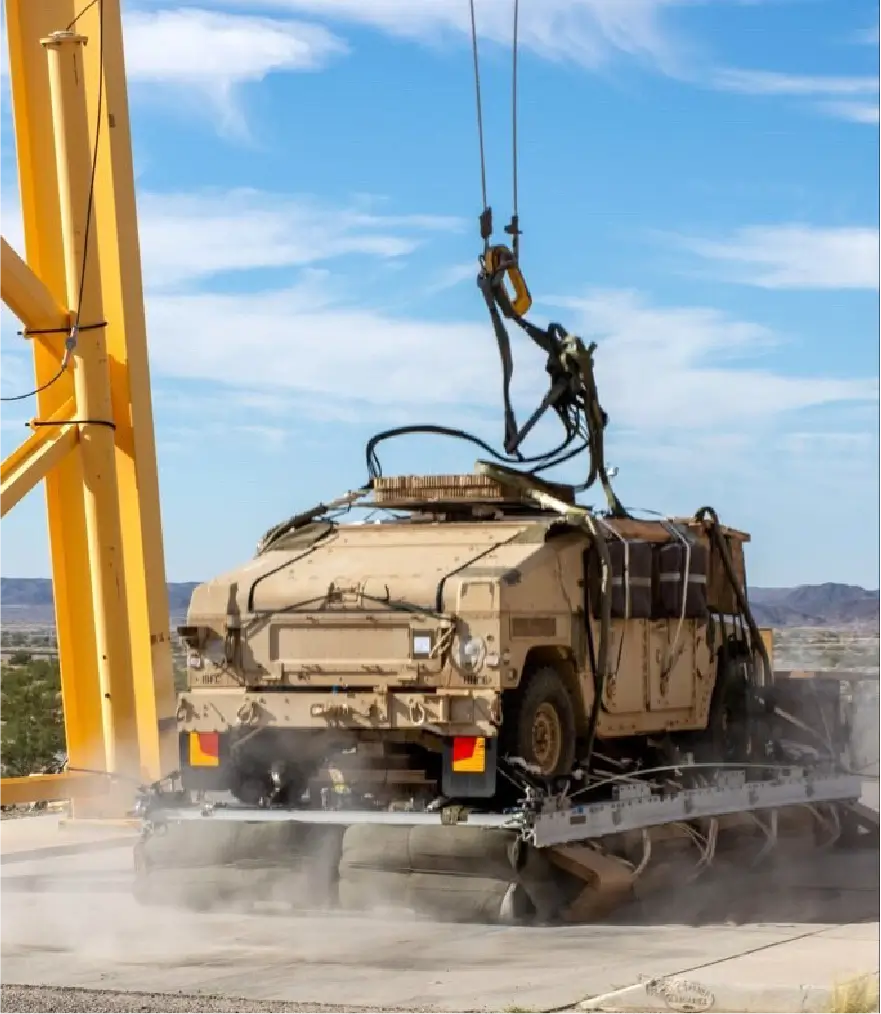

SIGNIFICANTLY REDUCES IMPACT LOADS
>80% LESS EDM

Cut back on Energy Dissipating Material (EDM).

RRDAS^® reduces impact forces to AS LOW AS 6 g vs. traditional EDM dependent air drop systems (18.5 g).

By using less honeycomb, RRDAS diminishes overall logistic footprints and improves upon total lifecycle cost.

COMPATIBLE WITH
EXISTING AIRDROP EQUIPMENT

Retrofit an existing Type V platform in under 8 hours. Reuse for 50+ drops with simple maintenance. Cut back on EDM honeycomb.

Bolt-on Solution: RRDAS^® installs to aerial delivery platforms and employs existing interfaces for full system compatibility
Safety by Design: Air Bag Modules only require ambient air for maximum safety & simplicity. No pyrotechnics or pressurized gas involved

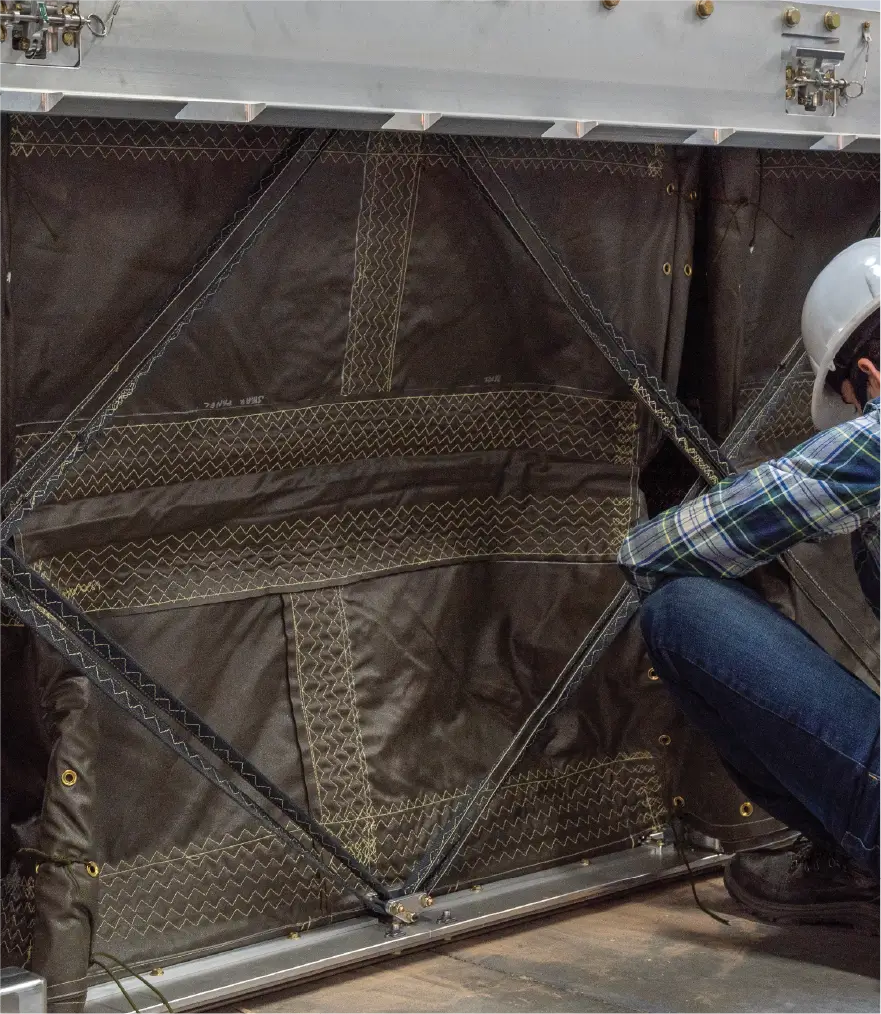

SIMPLIFIED
RIGGING & MAINTENANCE

No special tools needed. RRDAS^® uses common Rigger resourcess for rigging and maintenance:

~2 min visual inspection per Air Bag Module
Operational Checks in <20 min for a 20 ft platform
Easy Repair & Maintenance: Patch or replace an ABM in <10 min
No special storage requirements

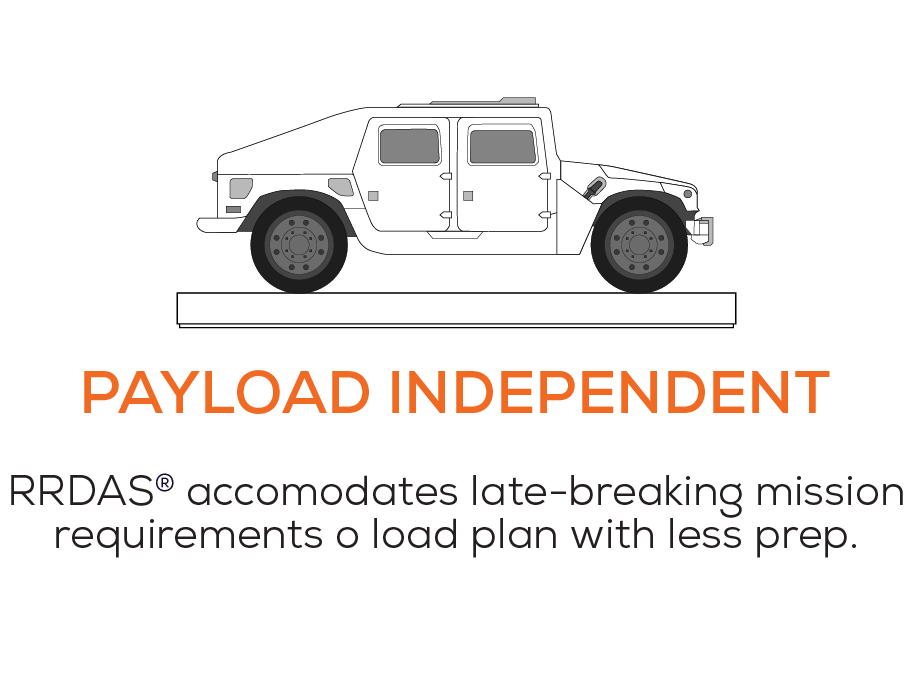

LOAD-INTERCHANGEABLE,
LONG-TERM CAPABILITIES

RRDAS^® is future-proof and works with payloads of multiple weights and sizes:

Total Rigged Weight (TRW): up to 42,000 lbs (19,051 kg)
Platforms: Type V, DRAS (in development)
Aircraft: compatible with C-130, C-17. Use existing rigging Technical Manuals

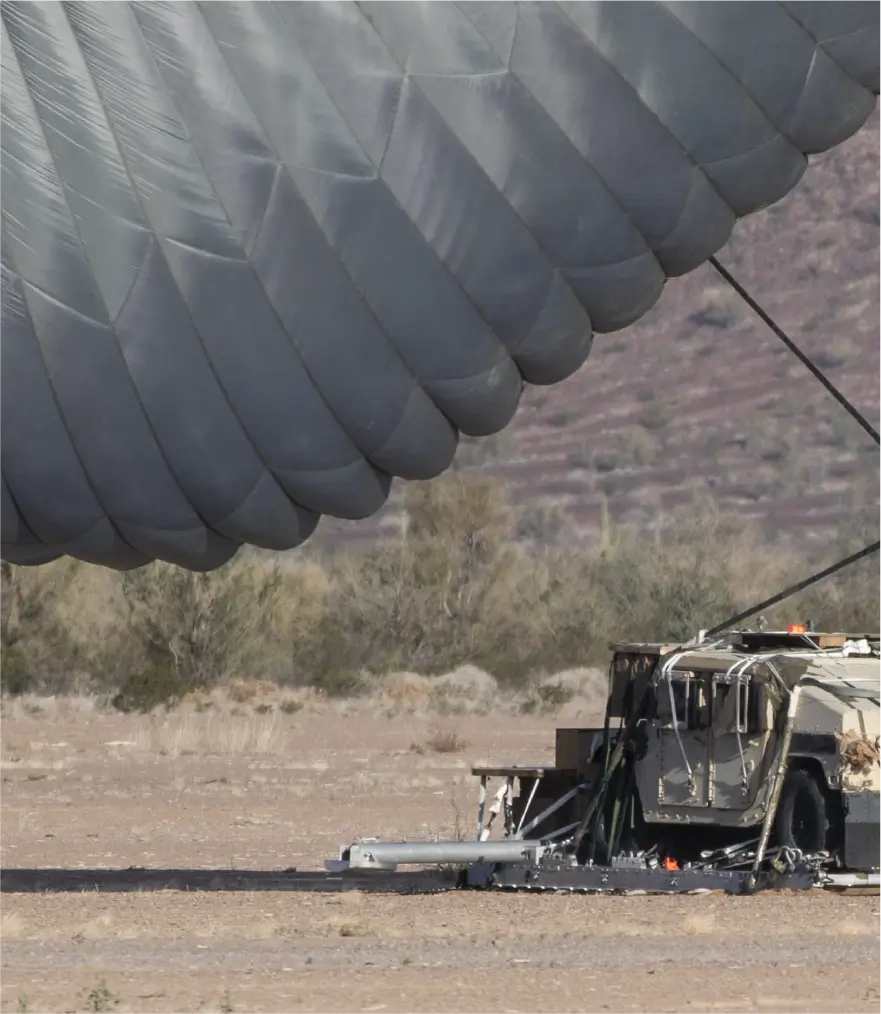

Payloads: Wheeled, tracked, and other. HMMWVs, JLTVs, UGVs, & many more without EDM underneath vehicle

On the DZ, every second counts.

We’re always ready for your mission. To learn more about NEWTON’s RRDAS^® & Aerial Delivery Systems^® and how we can enhance your Cargo Aerial Delivery Operations, please contact us using the link below.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

RRDAS TYPE V PLATFORM RETROFIT KIT®

FASTER RECOVERY,REDUCED WARFIGHTER EXPOSURE & RISKS

STRATEGIC FEATURES‍& ADVANTAGES

SIGNIFICANTLY REDUCES IMPACT LOADS>80% LESS EDM

COMPATIBLE WITHEXISTING AIRDROP EQUIPMENT

SIMPLIFIED RIGGING & MAINTENANCE

LOAD-INTERCHANGEABLE,LONG-TERM CAPABILITIES

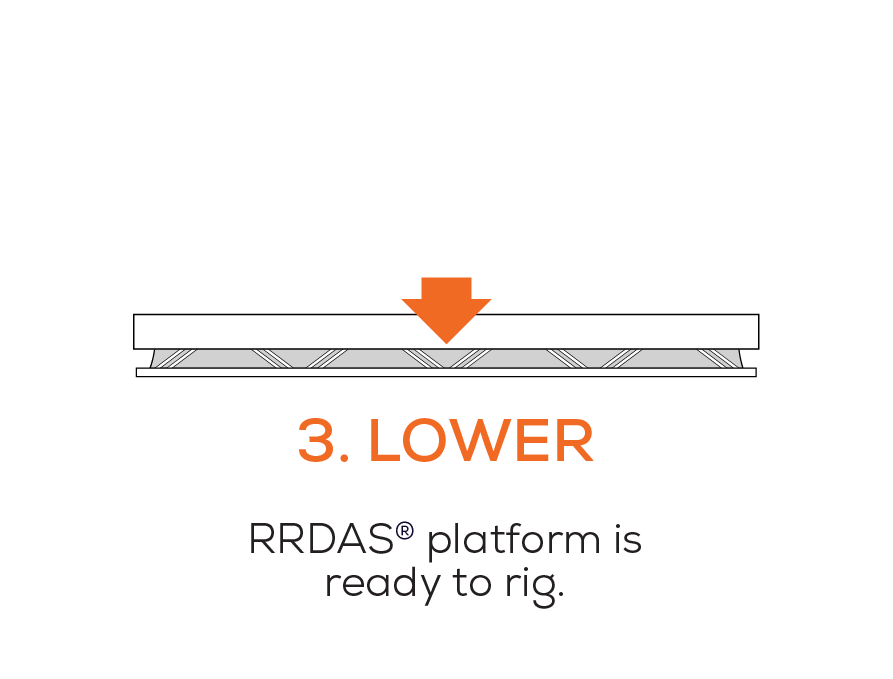

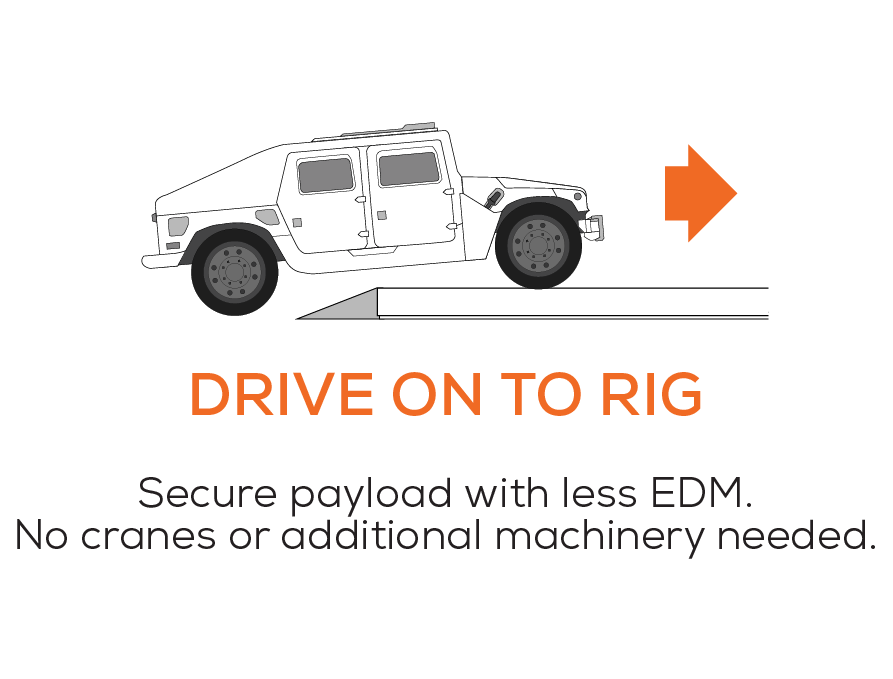

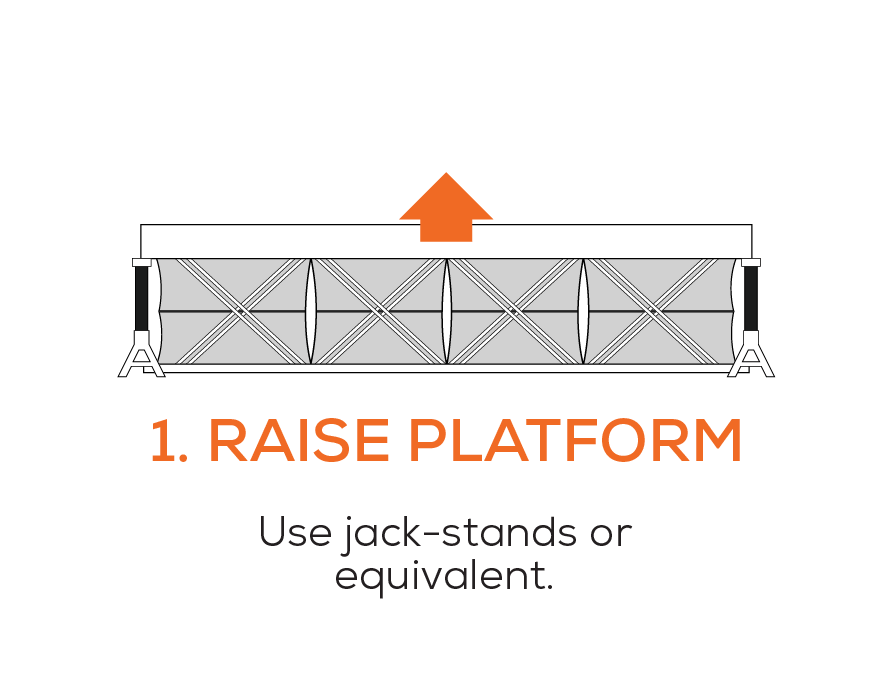

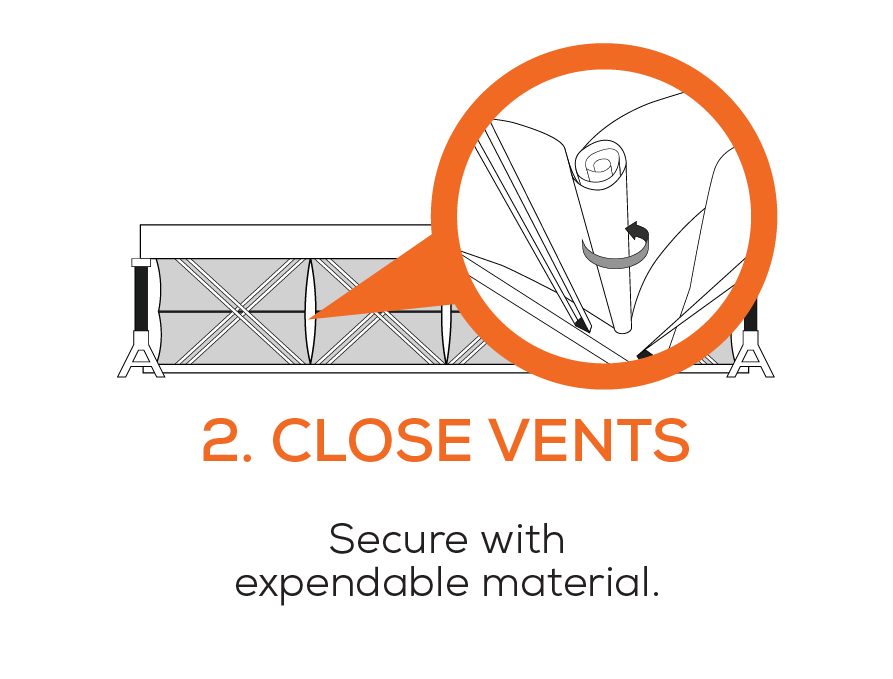

READY TO RIGIN 3 EASY STEPS
